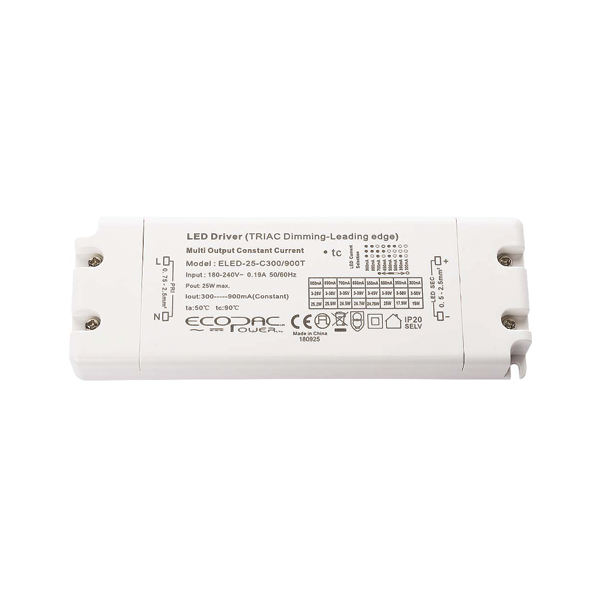

Ecopac ELED Triac Dimmable Driver 300-900mA 25W

£44.12
Excl. Tax: £36.77

Manufacturer: Ecopac / SKU: ELED-25-C300/900T

Constant current mode output

Multiple levels selectable by dip switch from 300mA to 900mA (see specification sheet)

Protections: Short circuit/ Over load/ Over Current

Other features:

  • Full protection housing east installation
  • IP20 design for indoor installation
  • Cooling by free air convection
  • Dimming function: Triac dimmable phase cut dimmable
  • 3 years warranty
Weight 0.210000
Manufacturer Ecopac
Input Voltage 180-240VAC
Wattage Max. 25W
IP Rating IP20
Dimmer Yes
Operating Temperature Range (°C) -40~+60°C (Refer to derating curve)
Safety Standards EN61347-1
DC Output Adjustment +/- 5%
Output Voltage Multi
Output Current 300mA - 900mA
Dimming Type Triac
