Punch Marine Compact AM/FM/WB Digital Media Receiver

£531.92
Excl. Tax: £443.27

Manufacturer: Rockford Fosgate / SKU: RF-PMX-2

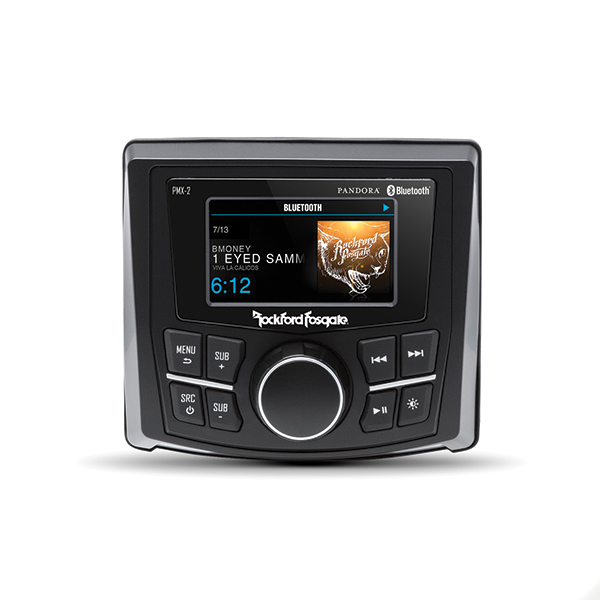

PMX-2 compact marine & motorsport digital media receiver



The PMX-2 is a high-performance compact digital media receiver, expertly designed for marine and motorsport environments where durability and functionality are key. Featuring a 2.7" full-colour TFT display with optical wet bonding for crystal-clear viewing — even in direct sunlight — this receiver offers full Bluetooth audio streaming, Pandora control, and versatile output options. With an internal 4x50W amplifier and the flexibility to add aftermarket amplifiers, the PMX-2 provides powerful sound control in a rugged, water-resistant design.

  • 2.7" full-colour TFT display with auto-dimming backlight and moisture-resistant bonding
  • IPX6-rated marine-grade construction for water resistance and durability
  • Bluetooth wireless streaming (A2DP and AVRCP) with album art display
  • Pandora Internet Radio control capabilities
  • AM / FM / WB tuner with multi-region radio frequency support
  • Internal 4x50W @ 2-ohm amplifier or RCA outputs for external amp integration
  • AUX and USB inputs with USB charging functionality
  • Independent subwoofer level control and onboard Punch EQ control
  • Selectable HP / LP / AP crossovers with selectable 12 / 24 dB/Oct slope
  • 7-band graphic EQ for customised sound tuning
  • iPod playback with on-screen display support
  • ISO8846 / SAE J1171 ignition protection certified
  • Low voltage warning alert for added safety
  • Wired remote expansion capability (compatible with PMX remotes)
  • FCC, CE, IC, and C-Tick certified
  • Backed by a 2-year warranty for peace of mind
  • Please note: antenna not included.
Weight 1.320000
Manufacturer Rockford Fosgate
Finish Black
Input Voltage 10.5Vdc - 16Vdc
IP Rating IPX6
Depth (mm) 74.00
Cut-out Size (mm) Ø77.00
Fuse 20 Amps
Power Output CEA-2006 Power Rating 25W x 4 @ 4Ω RMS 50W x 4 @ 2Ω Peak ≤1.0% THD+N
Speaker Impedance 2-Ohms
Compatible Remotes PMX-1R, PMX-0R
Android Compatibility Bluetooth® Only
iPod / iPhone Compatible Yes
USB Output Current 1A
RCA Output Voltage 2V RMS Does not clip at full output
RCA Output Impedance 500-Ohms
USB Capacity 32Gb max. 999 Folders max. 999 Songs max
Speaker Outputs Yes
RCA Outputs (1 pair) Front (1 pair) Rear (or Sub-out)
Display Size 2.7" Colour TFT
AUX Input Yes
USB Version 2.0
Multi-Zone / Multi-Source No
FM Tuner Sensitivity 8 dB
AM Tuner Frequency Range 530 kHz - 1710 kHz
AM Tuner Usable Sensitivity 40 dB
Media Player Audio Format Compatibility MP3, WMA
Pandora Internet Radio Yes
FM Tuner Frequency Range 87.5 MHz - 107.9 MHz
Tuner Number Of Presets 18 FM / 12 AM / 6 WB
Steering Wheel Control Ready No
Sirius XM Ready® No
Multi-Function Display Compatible No
Clock No
document Pmx 2 User Manual 1.26 MB
