Punch Marine 500 Watt Class-bd Mono Amplifier

£574.81
Excl. Tax: £479.01

Manufacturer: Rockford Fosgate / SKU: RF-PM500X1BD

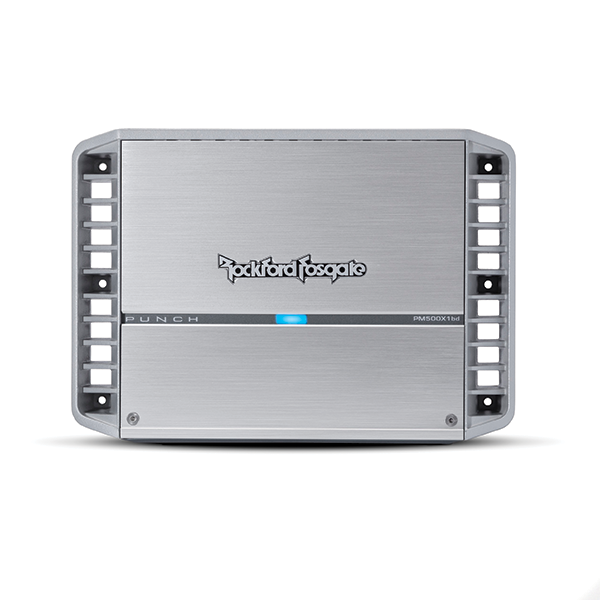

PM500X1BD 500 watt mono marine and motorsport amplifier



Unleash powerful, punchy bass on the water or the road with the PM500X1bd mono amplifier. Delivering 500 Watts of high-efficiency Class-bd power, this amp is purpose-built for driving subwoofers or mid-bass speakers with ease. Designed for marine and motorsport use, it features robust protection against the elements along with precision tuning options to maximise your system’s performance.

  • High level input capable with Auto Turn-On circuit for easy installation
  • C.L.E.A.N. Set-up system for accurate tuning and reduced distortion
  • Optional remote Punch Level Control (PLC2) ready with input clip indicator
  • RCA pass-thru outputs for flexible system configuration
  • 12dB/octave Butterworth crossover for precise low frequency control
  • On-board Punch EQ with +18dB boost at 45Hz for deep, controlled bass
  • Built-in infrasonic filter to protect your subwoofers from ultra-low frequencies
  • Muted turn-on to eliminate speaker pop during start-up
  • Stealth top-mounted control panel for a clean, discreet finish
  • Durable cast aluminium heatsink for efficient cooling
  • Integrated short circuit and overcurrent protection
  • Marine-grade two-part epoxy coating on circuit boards for corrosion resistance
  • Marine-grade stainless steel hardware for long-lasting reliability
  • Backed by a 2-year warranty for peace of mind



Weight 4.900000
Manufacturer Rockford Fosgate
Finish Anodised Aluminium
Input Voltage 9 - 16 Vdc
Fuse 80 Amps
Power Output CEA-2006 Power Rating 150W x 1 @ 4Ω ≤1.0% THD+N
Compatible Remotes Optional PLC2 provides Punch Level Control
Total Power (Sum of Rated Power) 500 Watts
Number of Channels 1
Rated Power (RMS Continuous Power) 150 Watts x 1 @ 4-Ohm 300 Watts x 1 @ 2-Ohm 500 Watts x 1 @ 1-Ohm
Bridgeable No
Input Sensitivity 150 mV to 12 V
Circuit Topology Class Class BD
Visual Indicators Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD
Power Wire Gauge 4 AWG
Speaker Wire Gauge 8 AWG to 18 AWG
Cooling Convection
Signal Input Hi/Low level: 1 RCA pair
Tone Controls Bass: 0 to +18 dB @ 45 Hz
Crossover Controls Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth Infrasonic Filter (IF): 28Hz @ 12dB/Octave Butterworth All-Pass: No
Power Input Connector Captive C-Clamp
Efficiency 86% @ 4-Ohm
iPod / iPhone Compatible No
Speaker Outputs No
AUX Input No
Pandora Internet Radio No
Steering Wheel Control Ready No
Sirius XM Ready® No
Multi-Function Display Compatible No
Clock No
